Skoots Small Engine Crankshaft Truing Stand v2

Dial in your small engine crankshaft with the newest version of Skoots Crankshaft Truing Stand with more adjustability. Built for builders, tuners, and DIY mechanics, this stand gives you a stable platform for checking and correcting the crankshaft runout and balancing on small engine crankshafts.

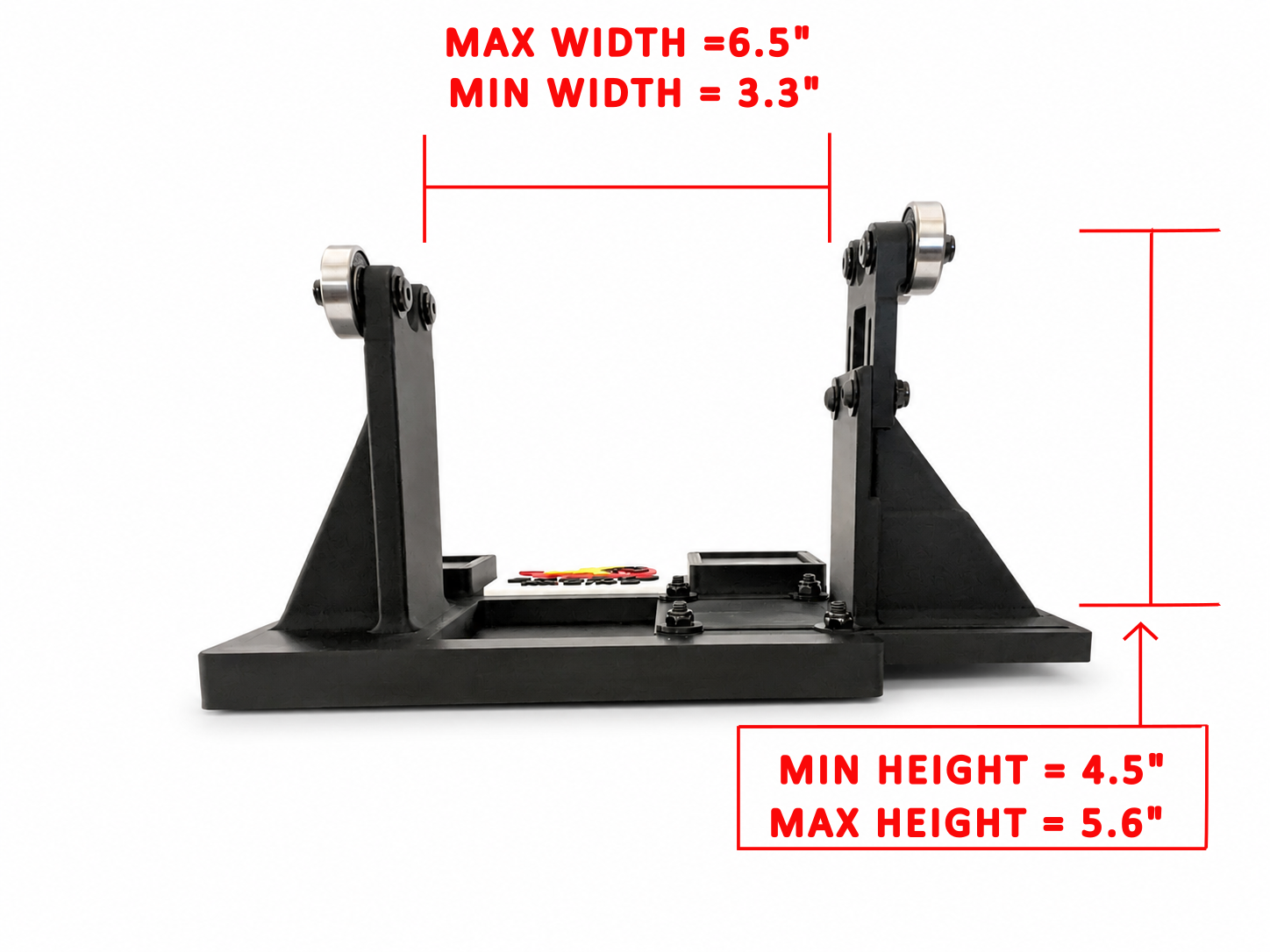

The stand features an adjustable-width design, allowing the uprights to be set from 3.3 inches to 6.5 inches apart to fit a range of crankshaft sizes. One upright also includes adjustable height, moving from 4.5 inches to 5.6 inches from the base of the upright, giving you more flexibility when working with different crankshaft journal dimensions. Dual sealed ball bearings provide ultra-smooth rotation.

Zero-drift indicator placement: Two steel mounting plates (left & right) let you lock your dial indicator’s magnetic base in place so it won’t creep mid-measurement. (Indicator sold separately)

Perfect for scooter, moped, mini bike, kart, and small engine builders who want a compact, adjustable, and practical shop tool.

Shop-friendly footprint: Low, rigid base keeps the crank low and stable on your bench for easy, ergonomic access.

PERFECT FOR:
-Measuring TIR (total indicated runout) on main journals and crank webs
-Truing pressed cranks after rebuilds
-Verifying cranks before assembly to protect cases, bearings, and seals

KEY FEATURES
-Uprights can be set from 3.3 inches to 6.5 inches apart to fit a range of crankshaft web sizes.
-One upright has adjustable height, moving from 4.5 inches to 5.6 inches from the base of the upright to accommodate different size journals.
-Sealed ball bearing rollers on both uprights for smooth, consistent rotation
-Left & right steel plates for dial indicator (magnetic base)—no clamps, no slip. (Indicator sold separately)
-Rigid base with non-marring silicone feet to protect your bench and prevent movement
-Works with analog or digital dial indicators (magnetic base recommended)
-Made in the USA

SPECIFICATIONS
-Compatibility: Small engine crankshafts from 50cc to 500cc
-Bearings: Sealed 6201 ball bearings (both uprights)
-Indicator Mounting: Dual steel plates for magnetic bases
-Adjustments: Spacing adjustment to accommodate different crank webs and journal diameters
-Materials: Steel / High-strength polymer
-Dimensions: L = 235.00 mm (9.252 in), W = 205.00 mm (8.071 in), H = 148.00 mm (5.827 in)

WHAT’S IN THE BOX
-Crankshaft Truing Stand Base + Adjustable Uprights (both with sealed bearings)
-Two integrated steel plates for magnetic base dial indicators (Indicator sold separately)

HOW TO USE (3 STEPS)
-Set spacing and height on adjustable upright to support both main journals evenly and level.
-Lock the magnetic base to the steel plate; zero the indicator on the journal or pin.
-Rotate and read TIR; adjust crank as needed until within spec.

SHIPPING, WARRANTY & SUPPORT
Ships from: USA
Warranty: 1-year limited warranty against manufacturing defects
Support: Setup help and truing tips via email after purchase
